Preserve Child Grain (`reduce=False`) - pandas + duckdb

Open full-size: PNG | SVG

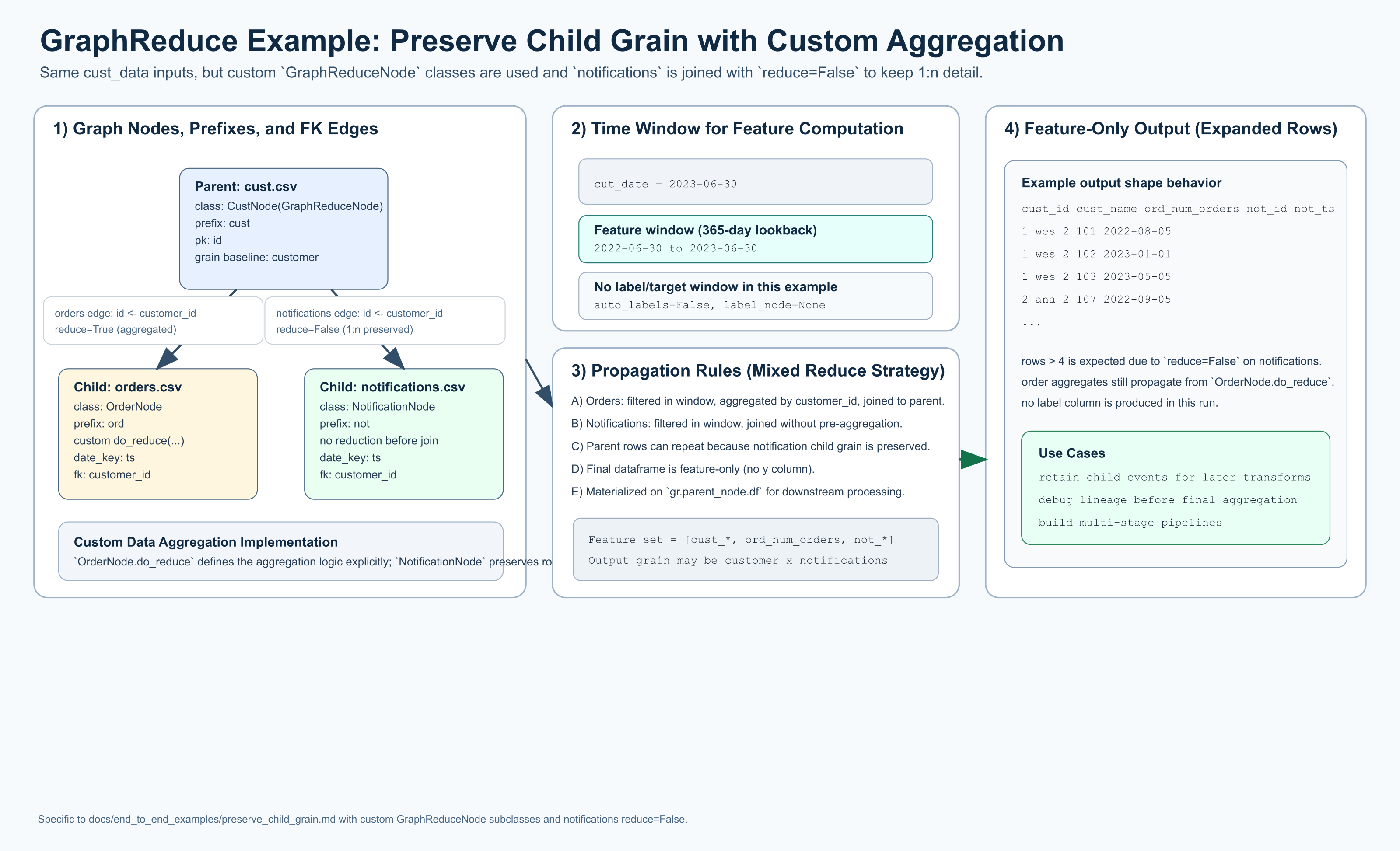

This diagram is intentionally parallel to the Hello World visual, but this example is a custom data aggregation implementation: it uses GraphReduceNode subclasses, an explicit OrderNode.do_reduce(...), and a notifications edge with reduce=False to preserve child 1:n grain.

This example also highlights the pluggability of GraphReduce across multiple backends by showing the same graph semantics in both a pandas backend and a duckdb backend (SQLNode-based execution).

This example uses the same sample data as Hello World but sets reduce=False on the notifications.csv edge:

gr.add_entity_edge(cust_node, notifications_node, parent_key="id", relation_key="customer_id", reduce=False)

The key effect is that notifications are not rolled up to one row per customer before joining. That preserves the child 1:n grain at the parent join point and expands output rows beyond pure parent grain.

When To Use This Pattern

Use reduce=False when you want downstream logic to keep child-level records instead of collapsing them into aggregated features immediately.

pandas backend

This variant uses custom GraphReduceNode subclasses and explicit pandas aggregation logic (OrderNode.do_reduce(...)).

import datetime
from pathlib import Path

import pandas as pd

from graphreduce.node import GraphReduceNode
from graphreduce.graph_reduce import GraphReduce
from graphreduce.enum import ComputeLayerEnum, PeriodUnit

data_path = Path("tests/data/cust_data")

class CustNode(GraphReduceNode):
    def do_filters(self):
        return self.df

    def do_annotate(self):
        return self.df

    def do_post_join_annotate(self):
        return self.df

    def do_normalize(self):
        return self.df

    def do_post_join_filters(self):
        return self.df

    def do_reduce(self, reduce_key):
        return self.df

    def do_labels(self, reduce_key):
        return self.df


class OrderNode(GraphReduceNode):
    def do_filters(self):
        return self.df

    def do_annotate(self):
        return self.df

    def do_post_join_annotate(self):
        return self.df

    def do_normalize(self):
        return self.df

    def do_post_join_filters(self):
        return self.df

    def do_reduce(self, reduce_key):
        return self.prep_for_features().groupby(self.colabbr(reduce_key)).agg(
            **{
                self.colabbr("num_orders"): pd.NamedAgg(
                    column=self.colabbr(self.pk), aggfunc="count"
                )
            }
        ).reset_index()

    def do_labels(self, reduce_key):
        return self.df


class NotificationNode(GraphReduceNode):
    def do_filters(self):
        return self.df

    def do_annotate(self):
        return self.df

    def do_post_join_annotate(self):
        return self.df

    def do_normalize(self):
        return self.df

    def do_post_join_filters(self):
        return self.df

    def do_reduce(self, reduce_key):
        return self.df

    def do_labels(self, reduce_key):
        return self.df


cust_node = CustNode(
    fpath=str(data_path / "cust.csv"),
    fmt="csv",
    prefix="cust",
    date_key=None,
    pk="id",
    compute_layer=ComputeLayerEnum.pandas,
)

orders_node = OrderNode(
    fpath=str(data_path / "orders.csv"),
    fmt="csv",
    prefix="ord",
    date_key="ts",
    pk="id",
    compute_layer=ComputeLayerEnum.pandas,
)

notifications_node = NotificationNode(
    fpath=str(data_path / "notifications.csv"),
    fmt="csv",
    prefix="not",
    date_key="ts",
    pk="id",
    compute_layer=ComputeLayerEnum.pandas,
)

gr = GraphReduce(
    name="preserve_child_grain",
    parent_node=cust_node,
    fmt="csv",
    compute_layer=ComputeLayerEnum.pandas,
    auto_features=False,
    auto_labels=False,
    label_node=None,
    label_field=None,
    label_operation=None,
    cut_date=datetime.datetime(2023, 6, 30),
    compute_period_unit=PeriodUnit.day,
    compute_period_val=365,
    auto_feature_hops_back=3,
    auto_feature_hops_front=0,
)

gr.add_node(cust_node)
gr.add_node(orders_node)
gr.add_node(notifications_node)

# Orders are still reduced to customer grain.
gr.add_entity_edge(
    parent_node=cust_node,
    relation_node=orders_node,
    parent_key="id",
    relation_key="customer_id",
    relation_type="parent_child",
    reduce=True,
)

# Notifications are NOT reduced; child-level grain is preserved.
gr.add_entity_edge(
    parent_node=cust_node,
    relation_node=notifications_node,
    parent_key="id",
    relation_key="customer_id",
    relation_type="parent_child",
    reduce=False,
)

gr.do_transformations()

print("rows:", len(gr.parent_node.df))
print("columns:", len(gr.parent_node.df.columns))
print(gr.parent_node.df.shape)

duckdb backend

This variant uses SQL nodes on DuckDB with the same graph semantics: orders uses custom reduction SQL, and notifications is joined with reduce=False to preserve child-level rows.

import datetime
from pathlib import Path

import duckdb

from graphreduce.node import DuckdbNode
from graphreduce.graph_reduce import GraphReduce
from graphreduce.enum import ComputeLayerEnum, PeriodUnit, SQLOpType
from graphreduce.models import sqlop

data_path = Path("tests/data/cust_data")
con = duckdb.connect()

cust_node = DuckdbNode(
    fpath=f"'{data_path / 'cust.csv'}'",
    prefix="cust",
    pk="id",
    columns=["id", "name"],
    table_name="customer",
)

orders_node = DuckdbNode(
    fpath=f"'{data_path / 'orders.csv'}'",
    prefix="ord",
    pk="id",
    date_key="ts",
    columns=["id", "customer_id", "ts", "amount"],
    table_name="orders",
    do_reduce_ops=[
        sqlop(optype=SQLOpType.agg, opval="ord_customer_id"),
        sqlop(optype=SQLOpType.aggfunc, opval="count(ord_id) as ord_num_orders"),
    ],
)

notifications_node = DuckdbNode(
    fpath=f"'{data_path / 'notifications.csv'}'",
    prefix="not",
    pk="id",
    date_key="ts",
    columns=["id", "customer_id", "ts"],
    table_name="notifications",
)

gr = GraphReduce(
    name="preserve_child_grain_duckdb",
    parent_node=cust_node,
    compute_layer=ComputeLayerEnum.duckdb,
    sql_client=con,
    auto_features=False,
    auto_labels=False,
    label_node=None,
    label_field=None,
    label_operation=None,
    cut_date=datetime.datetime(2023, 6, 30),
    compute_period_unit=PeriodUnit.day,
    compute_period_val=365,
)

gr.add_node(cust_node)
gr.add_node(orders_node)
gr.add_node(notifications_node)

gr.add_entity_edge(
    parent_node=cust_node,
    relation_node=orders_node,
    parent_key="id",
    relation_key="customer_id",
    reduce=True,
)

gr.add_entity_edge(
    parent_node=cust_node,
    relation_node=notifications_node,
    parent_key="id",
    relation_key="customer_id",
    reduce=False,
)

gr.do_transformations_sql()
out_df = con.sql(f"select * from {gr.parent_node._cur_data_ref}").to_df()

print("rows:", len(out_df))
print("columns:", len(out_df.columns))
print(out_df.shape)

con.close()

What To Expect

No y column is generated because labels are disabled (auto_labels=False).
The page includes both a pandas backend and a duckdb backend.
pandas backend uses custom GraphReduceNode subclasses.
duckdb backend uses DuckdbNode (a SQLNode implementation for DuckDB).
Rows are typically greater than the number of parent rows (cust.csv has 4) because the non-reduced notifications edge preserves 1:n detail.
With the bundled sample data and this configuration, expect 9 rows.
You still get aggregated signal from reduced edges (here: orders via custom reduction logic) while preserving notification-level rows.

Run Interactive

Use the interactive runner below to execute the pandas variant and stream logs directly in the docs UI.

Sample Data Files Used

tests/data/cust_data/cust.csv
tests/data/cust_data/orders.csv
tests/data/cust_data/notifications.csv
